Description

Key Specifications

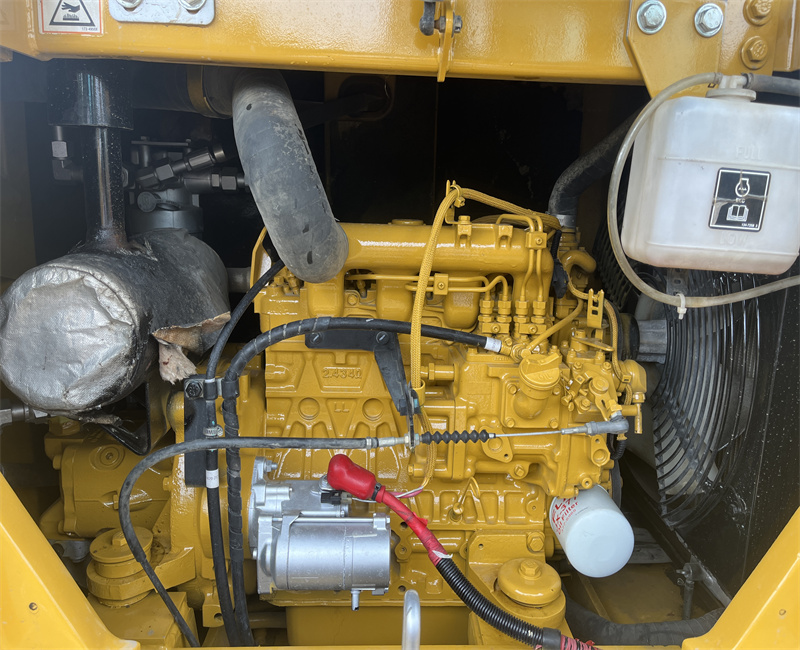

• Engine: Cat C2.4 DI, ~ 43 hp net (32 kW)

• Operating weight: ~ 5,350 kg (≈ 11,800 lbs) in standard configuration

• Dig depth: ~ 3,720 mm (≈ 12.2 ft)

• Maximum reach (at ground level): ~ 5,830 mm

• Bucket breakout force: ~ 35 kN (≈ 7,868 lbf)

• Travel speed: ~ 2.8 / 4.3 km/h (low / high)

• Hydraulic system: Load-sensing hydraulics with variable displacement pump for smooth control and responsiveness

• Dimensions: transport width ~ 1,950 mm; tail swing radius ~ 1,580 mm

Features & Highlights

• Conventional tail swing with extended counterweight for excellent stability in lifts and digging.

• Side boom design for added strength and balance on the front/side when lifting.

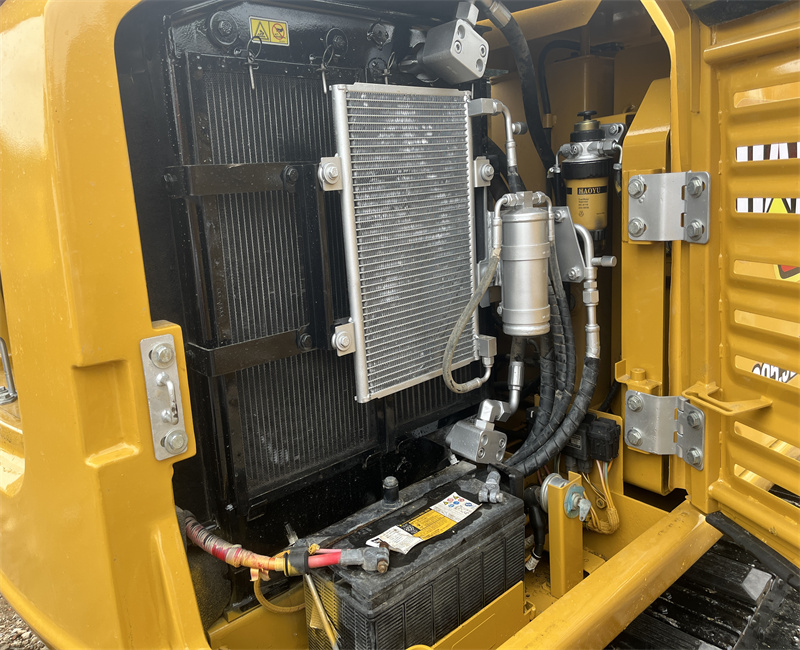

• Easy maintenance: large side doors, accessible service points, ground-level checks.

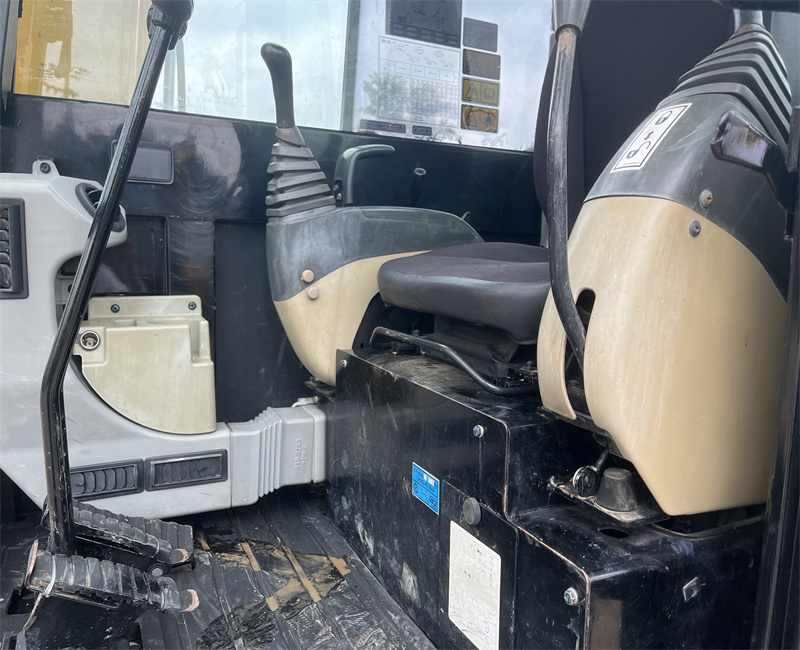

• Smooth and responsive controls with high definition hydraulics — ideal for precision work.

• Standard blade with float function, auxiliary hydraulic lines, and work tool readiness.

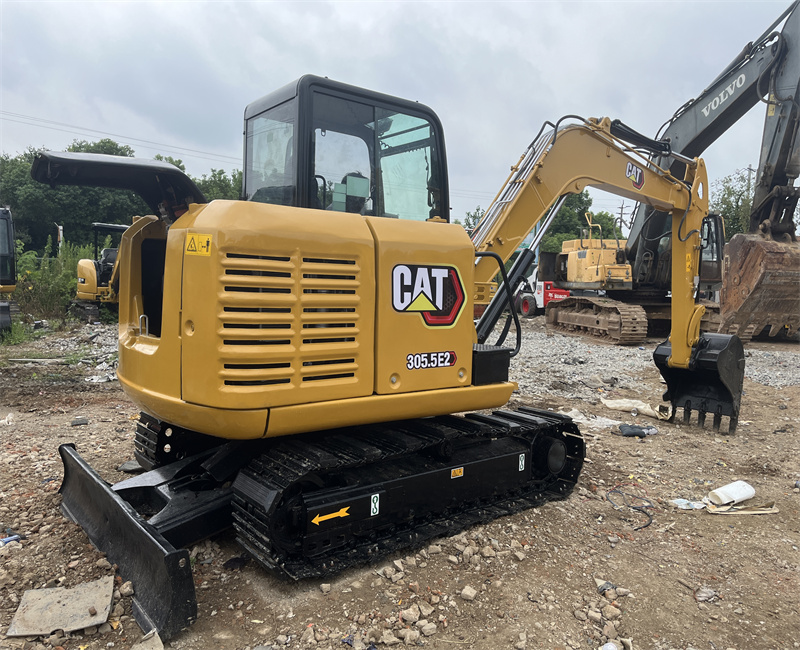

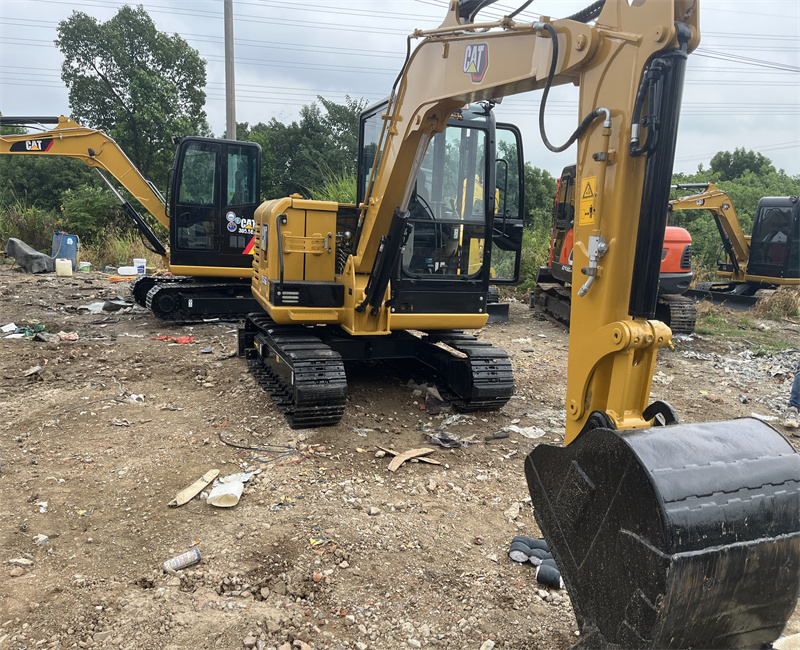

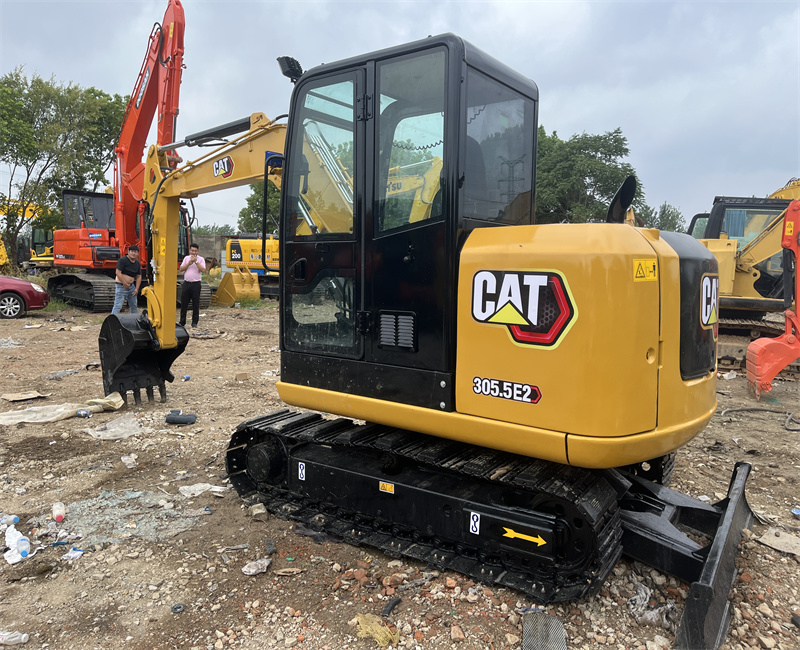

“CAT 305.5E Mini Excavator — Excellent Condition”

• ~ 43 hp Cat C2.4 engine

• Operating weight ~ 5,350 kg

• Dig depth ~ 3,720 mm, reach ~ 5,830 mm

• Strong breakout force (~ 35 kN)

• Load-sensing hydraulics, smooth controls

• Compact tail swing, stable under load

• Well maintained, ready to work
